PRODUCT DESCRIPTION

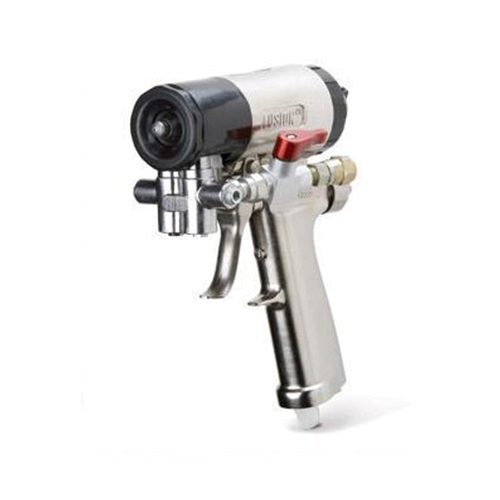

CS02F2 Fusion Gun for Spray Foam Insulation and Coatings

Graco’s Fusion gun featuring ClearShot liquid purge as an alternative to air purge or mechanical purge, is an industry first in spray foam insulation and coatings. Get to the finish line faster with even better results and reduced maintenance responsibility with the Fusion CS. Spray a wide range of patterns with only seconds between adjustments, and enjoy the engineering perfection that touches every aspect of the Fusion Gun line. Take your business further with Graco at Intech Equipment and Supply!

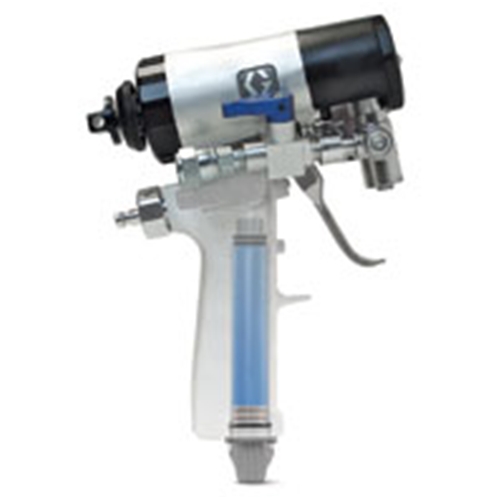

The newly designed handle of the Fusion gun houses the ClearShot liquid cartridge, and each time you pull the responsive trigger, liquid is dispensed into the mix chamber. As an alterative to mechanical or air purge functionality, the liquid keeps the chamber clean and prevents build up from the harsh plural component materials used in spray foam insulation and coatings. With the CS02F2, you virtually eliminate the need to drill inside the mix chamber to clean it, and you also have purge air cut down by 75%, reducing blow back of materials.

CS02F2 Fusion Gun Features:

• ClearShot liquid purge
• Non-stick coating (Polymer) on fluid head
• Easy front end swap in seconds
• Additional reduced build up from ‘air knife’
• Ten spray settings – covers large and small patterns
• Newly designed manifold
• Blocked fluid flow when manifold disconnects
• Quick change filter screens
• Mix chamber and side seals are Chromex coated
• Side seals with screw in place design
• Better crossover prevention with fewer O rings
• Quick shot trigger

This Fusion Gun CS02F2 comes with the FT0438 spray tip and the FL 0202 mix chamber. For polyurea, spray a 10 inch pattern at 1.3 GPM and for spray foam insulation, spray 9 pounds per minute at 1000 PSI. Check out the full Graco foam equipment line up, and place your order online or by phone today!

Operation Manual: 312666
Brochure: 300615

CS02F2 - FL0202 mix chamber with FT0438 flat tip (.052 orifice size)
