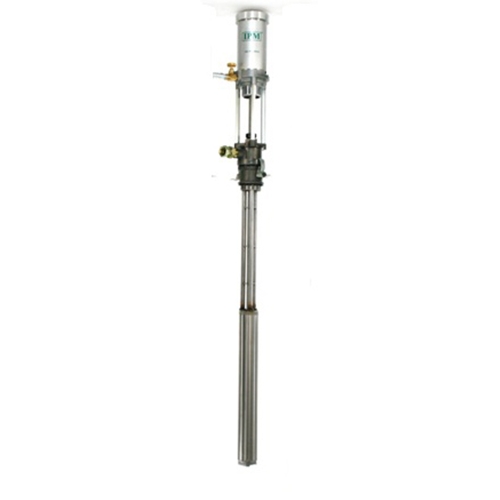

op232c: drum length transfer pump, 2:1 sst

PRODUCT DESCRIPTION

Description :

Air Operated Fluid Pump

Features :

Fully air operated
2 ball piston design provides uniform positive displacement
Extremely durable pump with long life packing
Specially designed piston seals do not come into contact with material pumped. Hence, very long life as it can handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.

Typical Applications :

For standrad 55 gallons steel drum
Foam chemical supply
Spray gun supply
Dispensing valve supply
Cleaning chemical supply
Fluid transfer

Typical Fluids Handled :

Solvent based paints
Water based paints (SST models)
Solvents
Cleaning chemical supply
Chemicals
Catalysts
Isocyanates
Adhesives
Resins
Polyurethanes
Polyureas

Fluid Ratio :2:1
Max Output Flow Int :7.5 gpm(28.4 lpm)
Max Output Flow Cont :5.0 gpm(18.9 Ipm)
Max Output Pressure :360 psi (24.8 bar)
Max Air Input Pressure :180 psi (12.4 bar)
Air Inlet Port :1/4 npt(f)
Fluid Outlet Port :3/4 npt(f)
Rod Piston Packings :UHMU PE or Telfon®
Other Seals :Viton®
Rod Cylinder :Stainless Steel
Other Wetted Parts :Stainless Steel
Weight :24 Ibs.(11.8 Kg.)
Weight Stubby Drum :NA
Package :OP232C...6"x6"x58"(152mmx152mmx147cm) 26 Ibs.(11.8 Kg.)
